Reduce aerodynamic drag and eliminate high-speed rear bumper parachuting with the XC3 Engineering Rear Bumper Speed Holes. At high track speeds, the massive cavity inside the rear bumper of BMW M cars acts like a parachute, trapping turbulent underbody airflow that escapes from the rear diffuser zone. This creates substantial vehicle drag and compromises high-speed stability.

Precision-engineered in the UK, these premium bumper vents allow high-pressure air trapped behind the rear fascia to exhaust cleanly, smoothing the vehicle's aerodynamic wake. Featuring a lightweight Carbon Fibre Reinforced structure with high UV resistance, they deliver true motorsport functionality while giving your E46, E9X, F8X, or G8X chassis a highly aggressive, time-attack visual profile.

Part Number: XC3-UV-140 (140mm) / XC3-UV-120 (120mm)

Key Features

– Lightweight, high-strength Carbon Fibre Reinforced structure
– Advanced compound matrix delivers excellent longevity and high UV resistance against fading

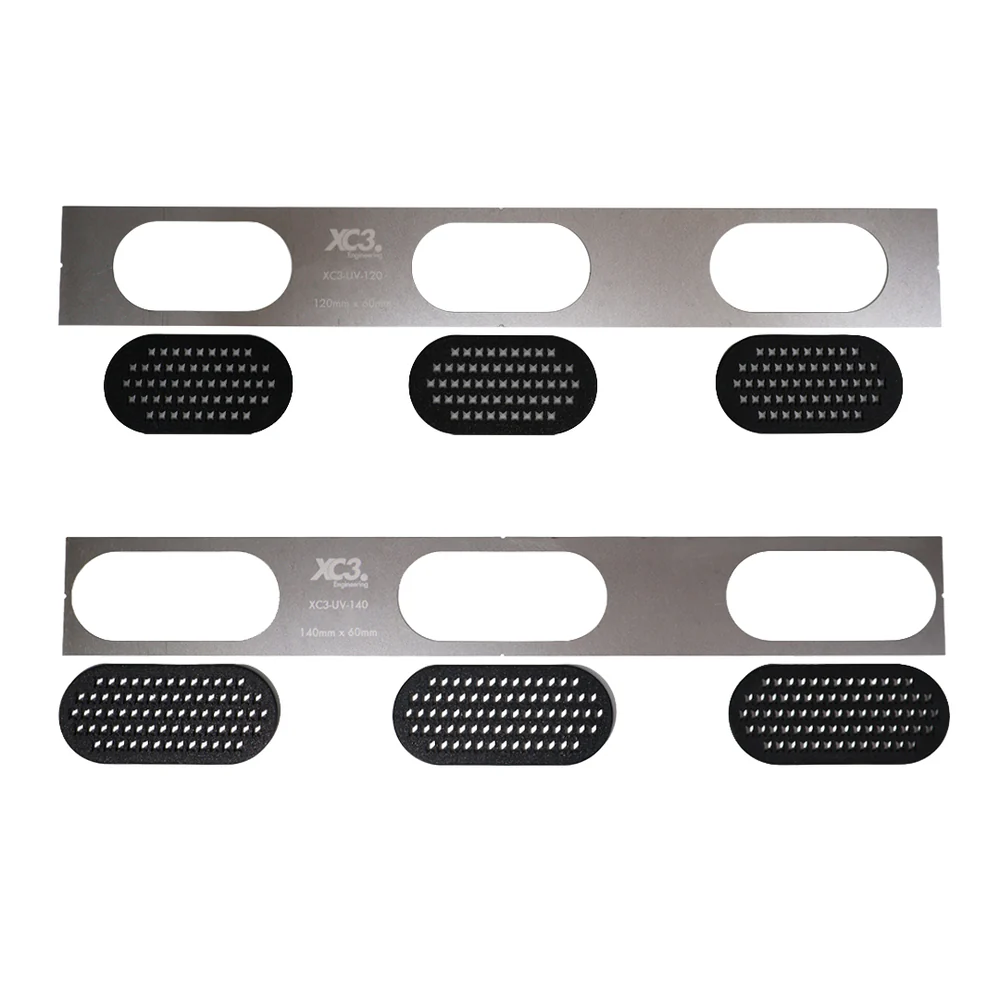

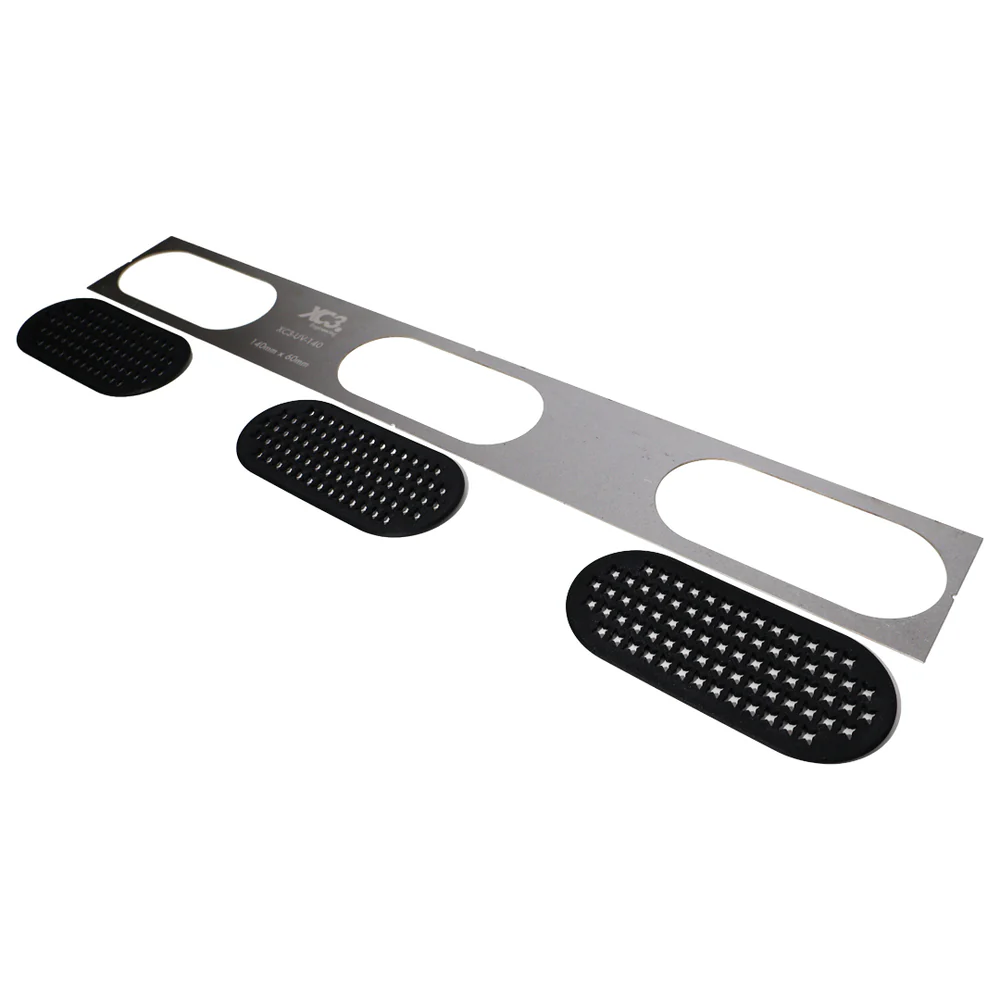

– Includes a CNC laser-cut aluminised steel layout template for absolute cutting accuracy
– Available in two distinct structural sizes: 120mm or 140mm configurations
– Premium design engineered, tested, and manufactured in the United Kingdom

Benefits

– Drastically reduces the rear bumper "parachute effect" by exhausting trapped, high-pressure airflow
– Decreases aerodynamic drag at high track speeds for improved straight-line velocity
– Adds a striking, functional, race-inspired aesthetic to the rear profile of your BMW build
– Covered by the comprehensive XC3 Engineering Lifetime Warranty for long-term reliability

Dimensions

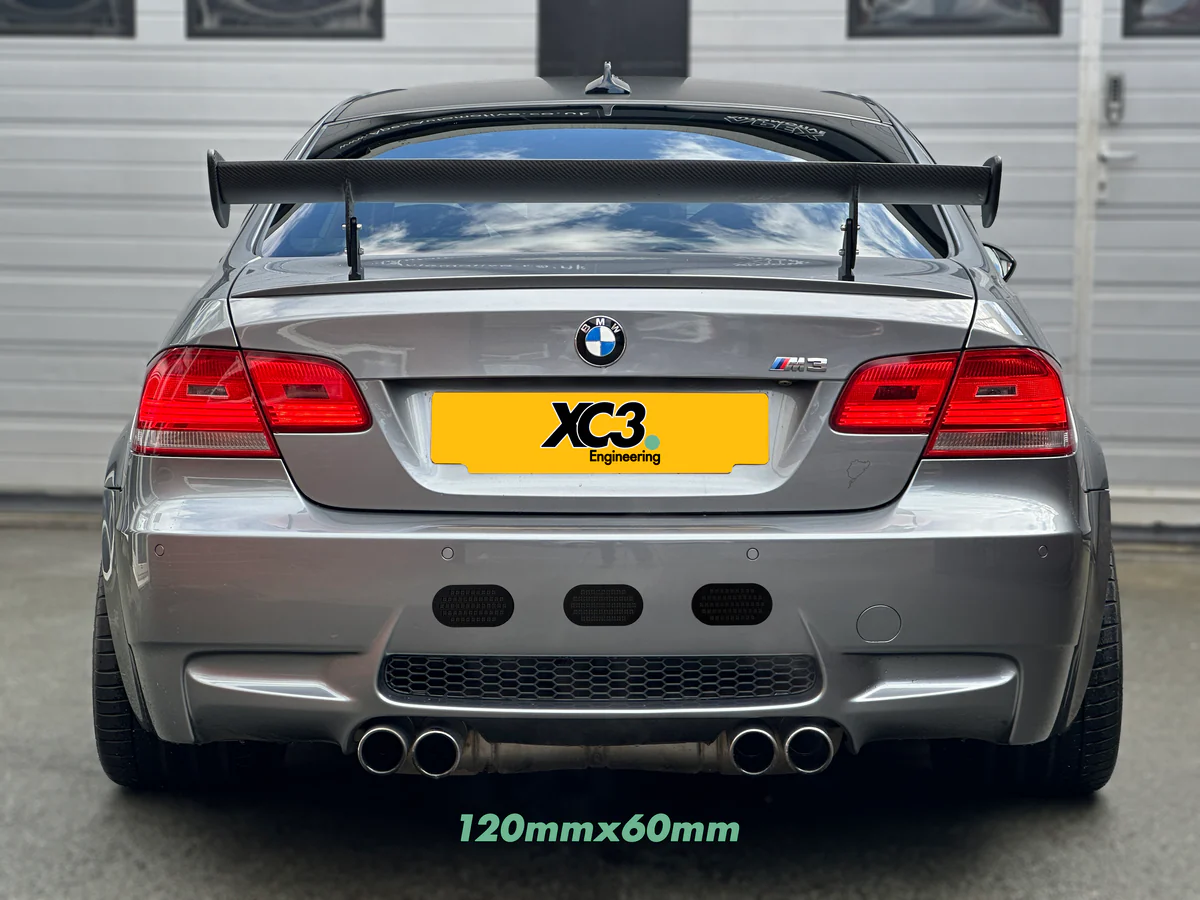

– Vent Sizing Variations: 120mm × 60mm OR 140mm × 60mm
– Individual Vent Height: 65mm
– Vent Spacing: 75mm
– Overall Vent Assembly Width: 525mm (for 120mm spec) / 585mm (for 140mm spec)

FAQ

Q: Is this kit specific to one BMW model or is it a universal product?
A: While designed and tested thoroughly across multiple generations of M cars (E46, E9X, F8X, G8X), this design is highly adaptable and can be universally installed on a wide range of track-day, sprint, or time-attack vehicles with flat rear bumper panels.

Q: How are these speed hole vents secured into the rear bumper fascia?
A: Professional installation is highly advised. After utilizing the included laser-cut steel template to mark and cut your bumper framework, the vents must be permanently secured from the inner side using an automotive-grade structural adhesive suitable for exterior bodywork applications.

Q: Will the carbon fiber material yellow over time from exhaust heat?
A: No. XC3 components utilize a high-spec resin composite formulation featuring advanced UV inhibitors and high thermal resistance, ensuring the raw finish stays deep and clear even when exposed to high environmental stress and track conditions.

Fitment

– BMW M3 E46 (2000-2006)
– BMW M3 E90 / E92 / E93 (2007-2013)
– BMW F8X M2 / M3 / M4 (2014-2021)
– BMW G8X M2 / M3 / M4 (2021+)
– Universal applications across various makes and models

If you are unsure on fitment, please message us with your registration or VIN and we will confirm compatibility before purchase.
